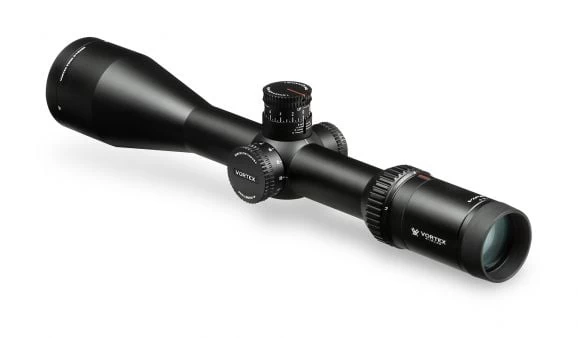

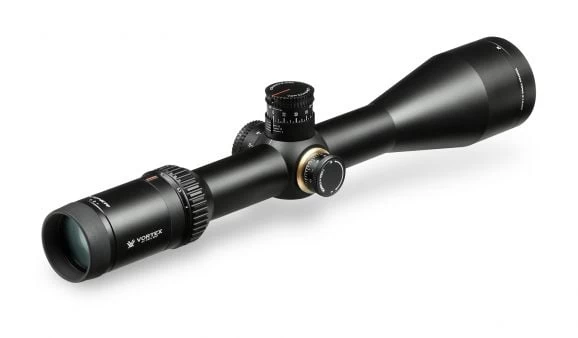

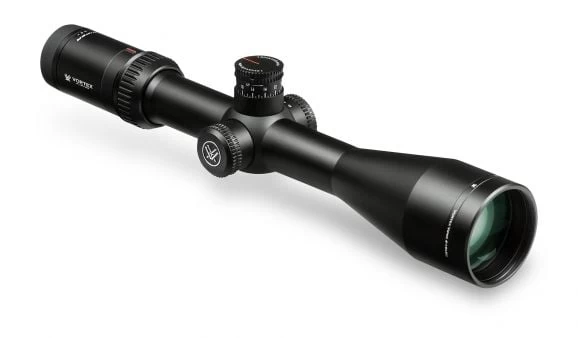

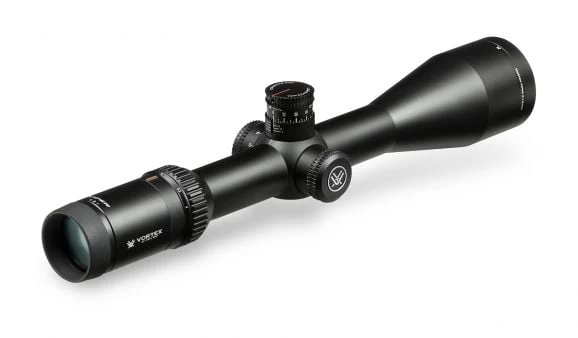

Vortex VIPER® HS LR™ 4-16X50 Dead-Hold BDC (MOA) Reticle 30 Mm Tube

Want to extend your effective shooting range at distances
where bullet drop and wind drift become critical? Take a look at the Viper HS
LR riflescope. The LR stands for long range – and we mean it. This riflescope
features an exposed target-style elevation turret built for dialing elevation
at extended ranges. The capped windage turret maintains the scope’s sleek lines
and prevent it from hanging up on clothing, rifle cases or pack scabbards.

Viper HS LR riflescopes feature an advanced optical system
highlighted with a 4x zoom range for magnification versatility. A forgiving eye
box with increased eye relief gets shooters on target quickly and easily. Built
on an ultra-strong 30mm one-piece machined aluminum tube for increased windage
and elevation travel and optimal adjustment.

Viper HS LR 4-16×50 Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
13.7	2.0	2.2	5.6	4.2	3.6



Heights
H1	H2
2.26	1.63



Dual use for Shooting
Tactical / Hunting
US Patent 7,937,879

Included in the Box

• Protective
  lens caps

• 4-inch
  sunshade

• Lens
  cloth

Magnification 4-16x

Objective Lens Diameter 50 mm

Eye Relief 4.0 inches

Field of View 27.4-7.4 ft/100 yds

Tube Size 30 mm

Elevation Turret Style Tactical

Windage Turret Style Capped

Elevation Adjustment Graduation 1/2 MOA

Windage Adjustment Graduation 1/4 MOA

Elevation Travel Per Rotation 24 MOA

Windage Travel Per Rotation 12 MOA

Max Elevation Adjustment 75 MOA

Max Windage Adjustment 50 MOA

Parallax Setting 50 yards to infinity

Length 13.7 inches

Weight 21.4 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

XD™ Lens Elements Extra-low dispersion (XD) glass increases
resolution and color fidelity, resulting in crisp, sharp images.

XR™ Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of
adjustment, size and weight for a wide variety of shooting applications.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Tactical Elevation Turret Exposed elevation turret provides
fast, accurate and easily read elevation adjustments. Capped windage turret.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.

INTERNAL MECHANISM
DESIGN FEATURES

CRS™ Zero Stop Customizable Rotational Stop (CRS) aids in
return to zero after dialing temporary elevation correction.

Precision-Force Spring System Uses premium components in the
erector-spring system to ensure maximum repeatability and ease of adjustment.

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

CONVENIENCE FEATURES

MAG-View Fiber Optic Provides a highly visible reference
point for the magnification setting.

Radius Bar Fiber optic turret rotation indicator provides a
highly visible and tactile point of reference for turret rotations.

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE





DEAD-HOLD BDC RETICLE

Customized hashmark design helps eliminate guesswork on
holdover and windage corrections. Good for hunting/shooting at varying ranges
where estimating holdover is a concern.

Subtension detail for Viper HS LR 4-16×50 riflescope with
Dead-Hold BDC MOA reticle.
